Jiangsu Shendian Electric Co., Ltd.
Nine Key Production Processes of Dry-Type Transformers

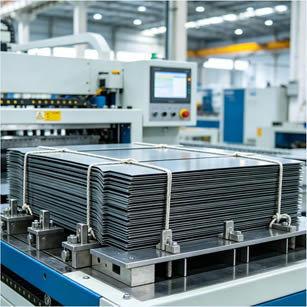

① Core Processing & Lamination Stacking
CNC-cut silicon steel sheets, stepped-lap stacking. No-load loss & current tests.

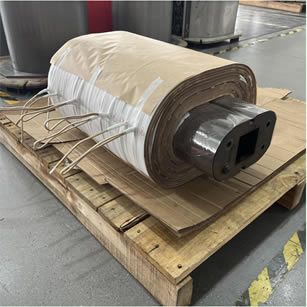

② HV & LV Winding Manufacturing
Copper foil/round wire windings. Insulation paper between turns. Axial pre-compression.

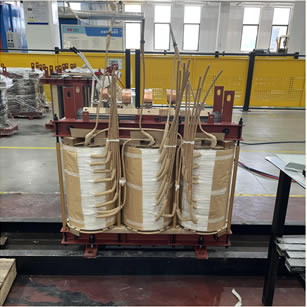

③ Core & Winding Assembly
Precise concentric alignment. Insulating barriers installed. Lead welding & tap changer mounting.

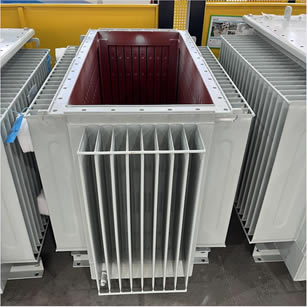

④ Tank Fabrication & Sealing Test
CNC-cut steel plate welding. Anti-corrosion coating. Helium/kerosene leak detection.

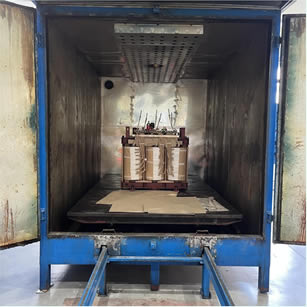

⑤ Vacuum Hot-Press Drying
High-temp & high-vacuum treatment. Removes moisture from insulation. Prevents partial discharge.

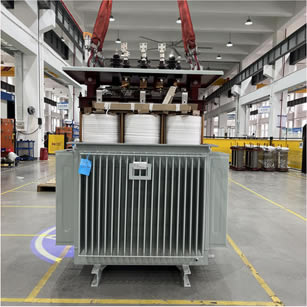

⑥ Active Part Hoisting & Tank Assembly
Careful hoisting into tank. Bushings, conservator, thermometers installed. Oil-tight sealing.

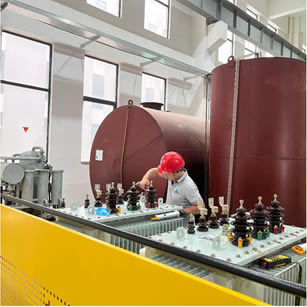

⑦ Vacuum Oil Filling & Treatment
Multi-stage vacuum filtration. Slow filling under vacuum. Eliminates air bubbles for optimal dielectric strength.

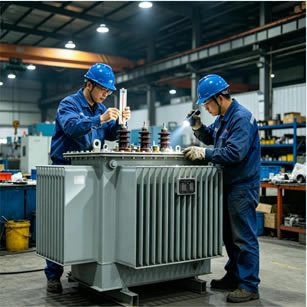

⑧ Standing & Oil Conditioning
24-72h ambient standing for full impregnation. Recheck oil level & sealing. No leakage/seepage.

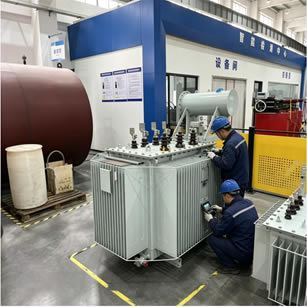

⑨ Final Routine & Type Testing
DC resistance, ratio, insulation, withstand voltage, no-load/load loss, temp rise, PD test. Approved for shipment.
Power Distribution Solution
In the event that either Product Quality or Shipment Date varies from what you and the supplier had agreed to in the Trade Assurance online order, we will offer you assistance in reaching a satisfactory outcome, including getting your money back.
-

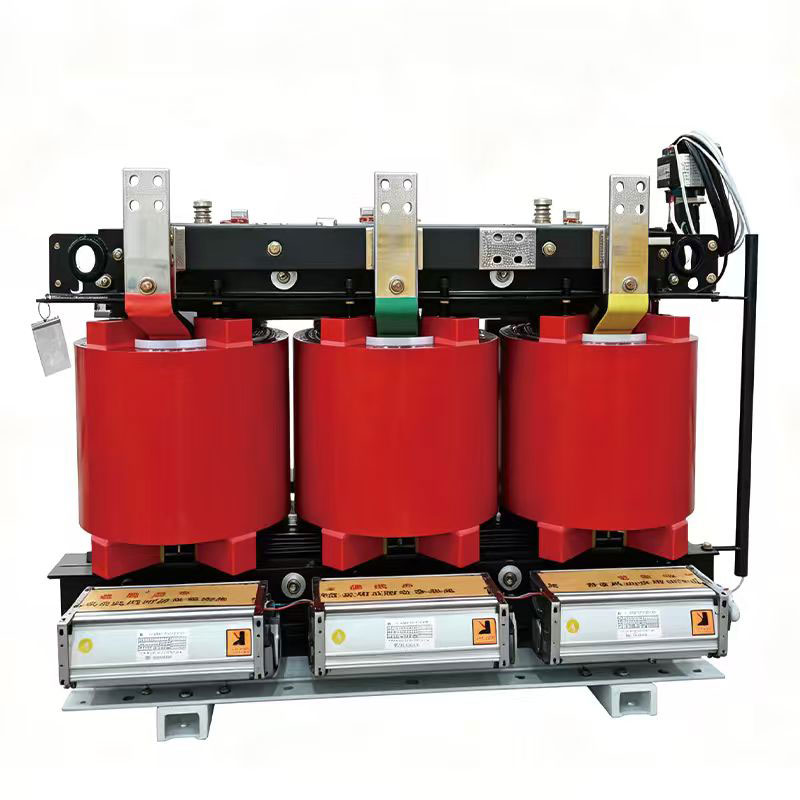

Are Dry-Type Transformers Fire Safe?
Dry type transformers greatly improve fire safety by eliminating flammable insulating oil, making them particularly suitable for high-rise buildings, underground facilities, data …… -

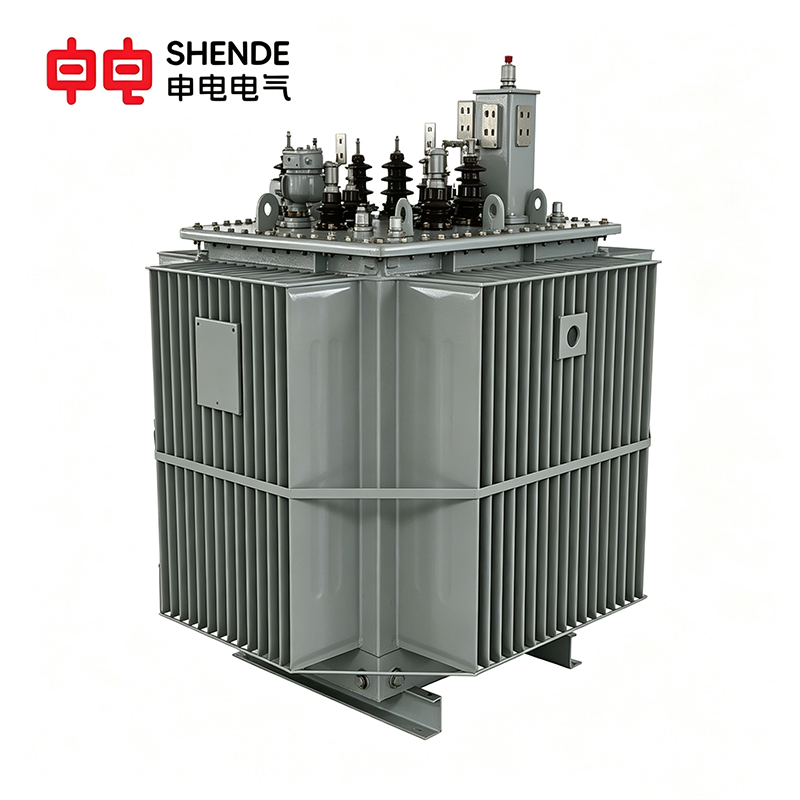

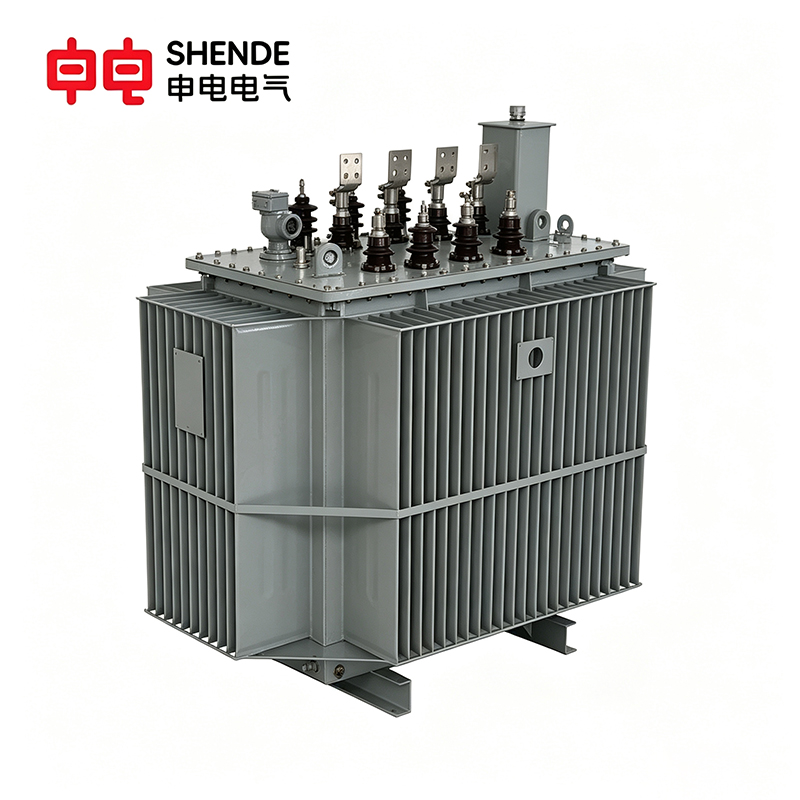

How about Distribution Transformer Demand Growth Trend in the African Market
Africa’s distribution transformer market is experiencing sustained, multi-layered demand expansion, driven by universal power access gaps, large-scale grid upgrades, renewable ene…… -

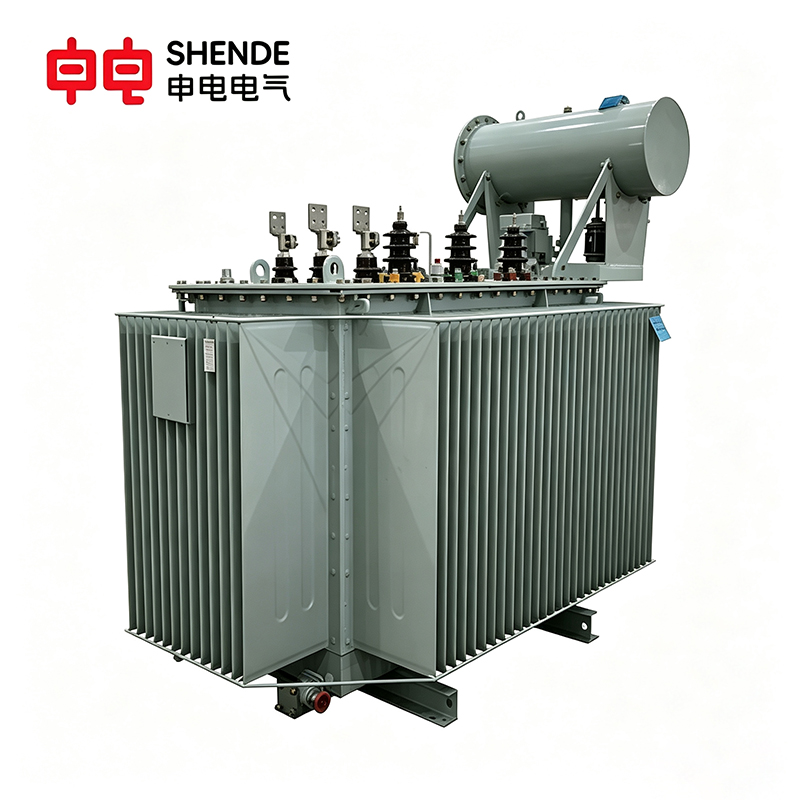

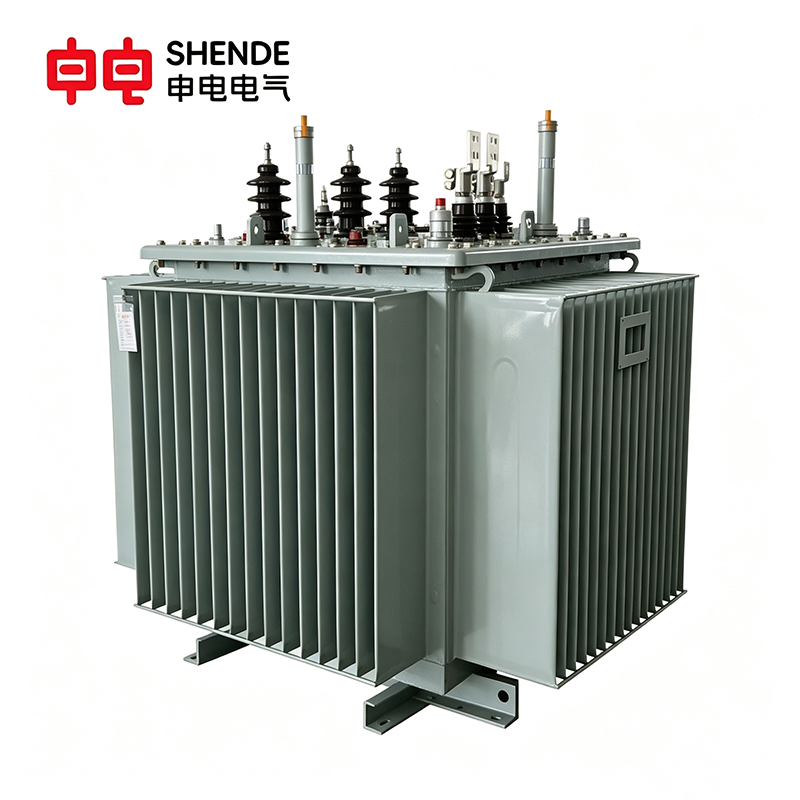

Comprehensive Quality Control for Oil-Immersed and Dry-Type Distribution Transformers
1. Overview Transformers are critical assets in power distribution systems, and their quality directly impacts grid stability and operational safety. This document outlines a comp…… -
How Fire-Safe Are Dry-Type Transformers
Short answer: Dry-type transformers offer significantly improved fire safety compared with oil-immersed transformers because they eliminate the use of flammable insulating oil. Ho…… -

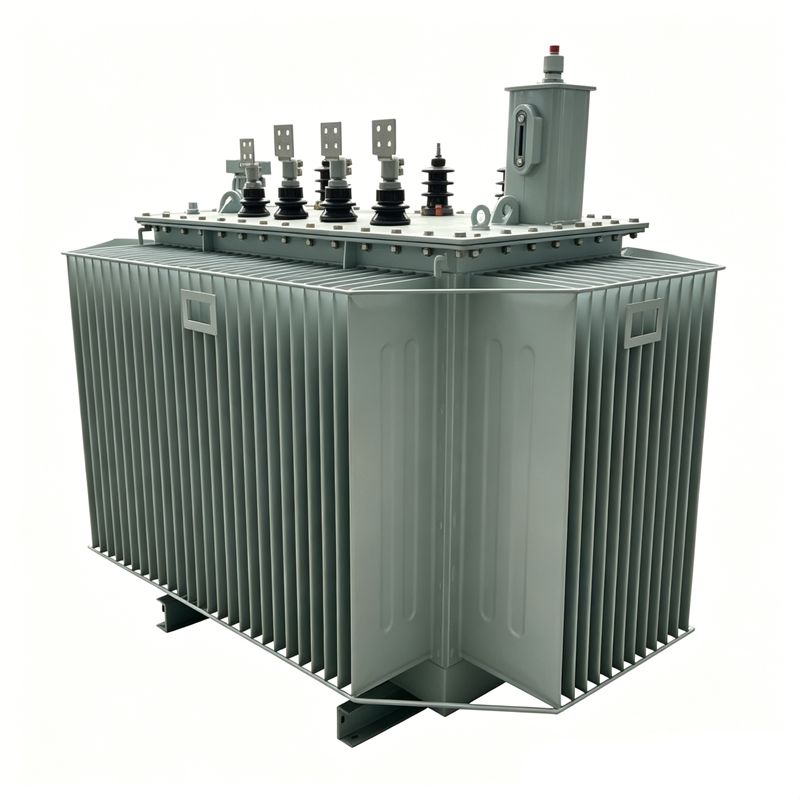

How to Select the Right Distribution Transformer for Industrial Manufacturing Facilities
As manufacturing plants become more automated and energy-intensive, transformer selection requires more than simply matching voltage ratings. Engineers and facility managers must ……
About Us

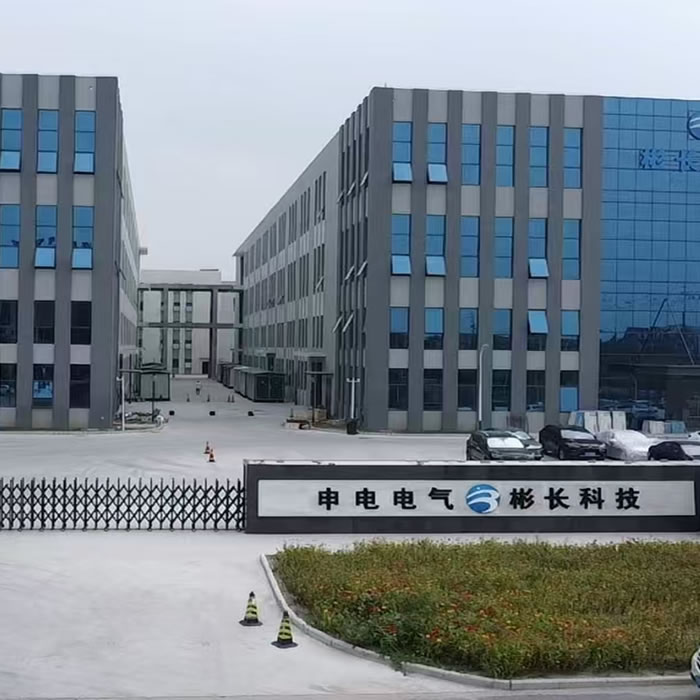

A power transformer manufacturer and service provider that integrates scientific research, design, production, sales, and services. The production base is located at No. 139 Zhenxing Road, Motou Town, Rugao City. The company covers an area of 30 acres, with a factory area of 30000 square meters and more than 200 employees. The transportation is convenient and the geographical location is superior.

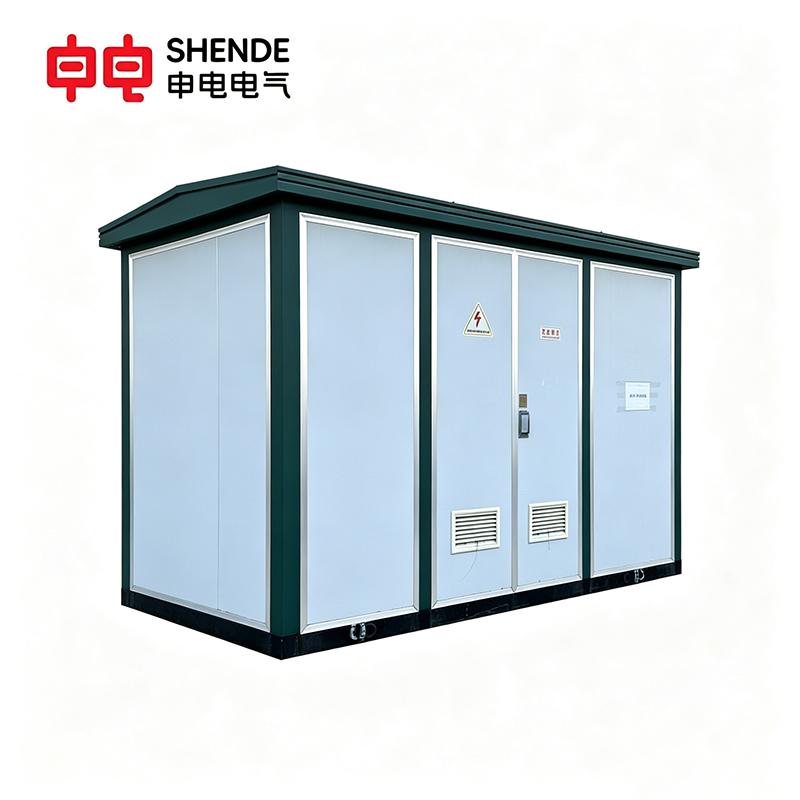

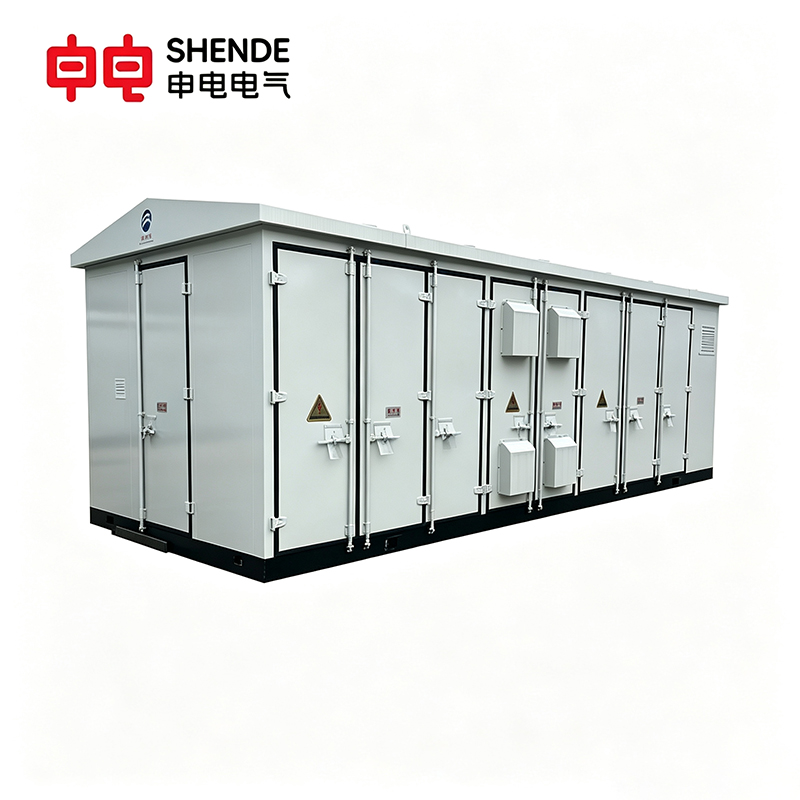

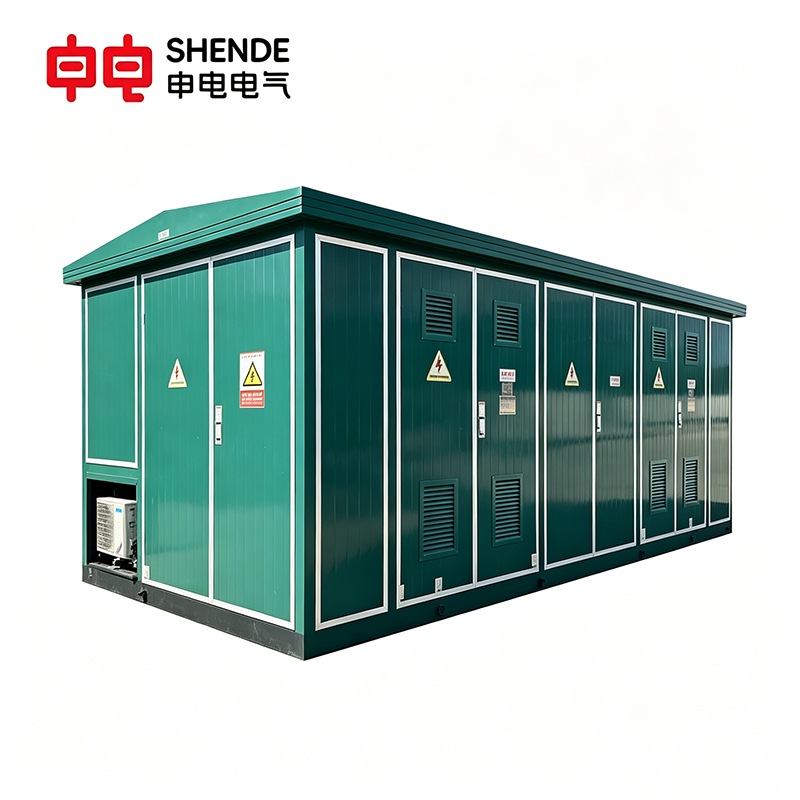

We mainly produce SC (B) 13, 14, and 18 series epoxy resin cast dry-type transformers with voltage levels ranging from 10 to 35kV, as well as S20 and 22-M series oil immersed power transformers; SG(B) Series of non encapsulated dry-type transformers, ZPSG series phase-shifting rectifier dry-type transformers for variable frequency speed regulation, YB type prefabricated substations, ZBW type box type substations. We can also produce various specifications of dry-type rectifier transformers, grounding transformers, reactors, special products and other coils according to user needs, and provide customers with distribution solutions to solve temporary power supply and emergency power supply services.
We have first-class professional production equipment such as iron core transverse cutting wire, iron core longitudinal cutting wire, vacuum casting equipment, vacuum impregnation equipment, foil winding machine, as well as testing equipment such as inter turn insulation tester, power analyzer, partial discharge tester, etc. It is one of the enterprises in the power transmission and distribution industry in Shanghai with the strongest supply capacity, the most complete variety and specifications, the highest production efficiency, and the best service.
Get A Free Quote
If you are searching for information about our products, please submit your inquiry by filling out the form below and our customer care team will make a reply. Use a quote template to create your price quote. A price quote, estimate, service quote, or sales quote is an agreement between a customer and a vendor to provide services and products at an agreed-upon price.
Use the form below to get in touch with us:
Our Partners
What sets us apart from the competition? Our ability to listen to our customers!
We are a major transformer manufacturer in China, fulfilling orders with shorter delivery times and complex technical specifications. We have won the trust of thousands of customers, including the following outstanding clients:
